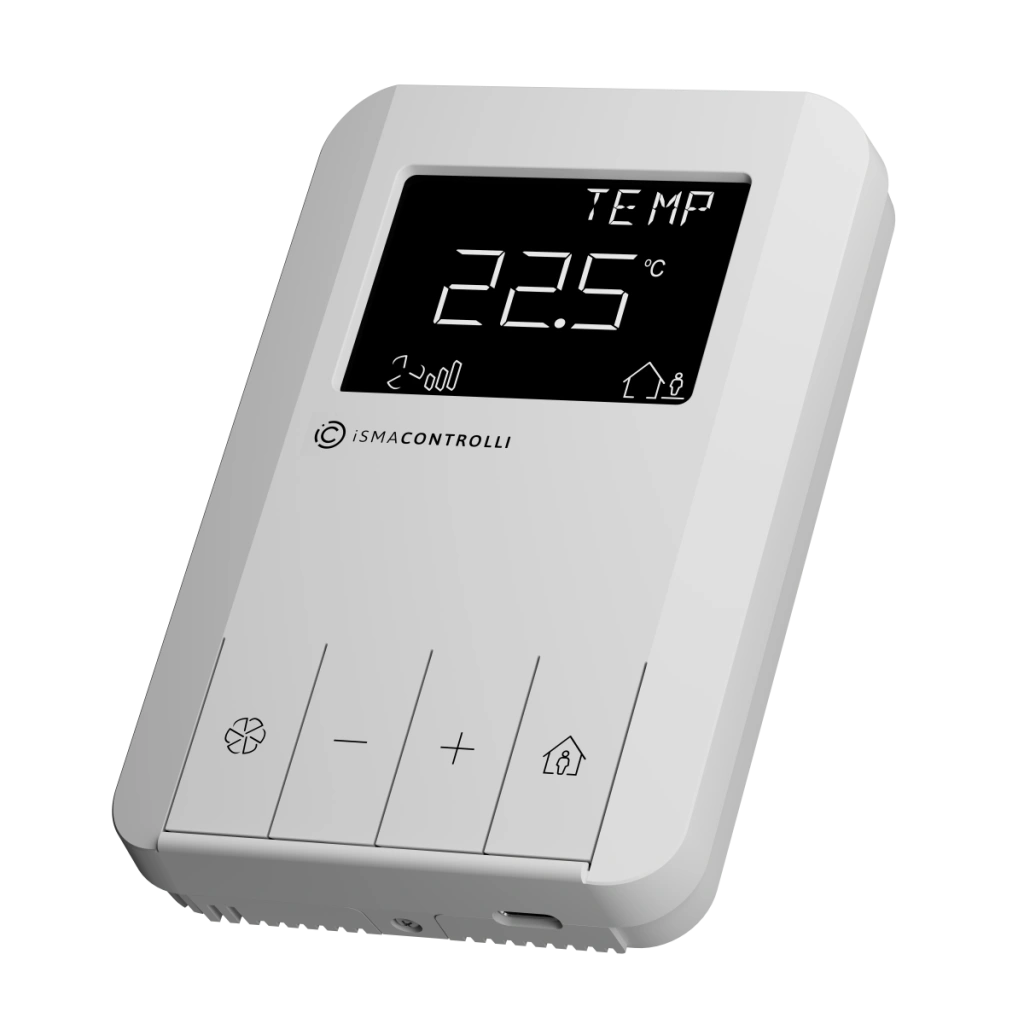

CP-HC-DISP-W

CP-HC-DISP-W

Control Point wall panel with 2,6″ LCD display, buttons for navigation and temperature setpoint. Built-in temperature, and CO2 sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations. The CP-HC version is equipped with a temperature, humidity, and CO2 sensors.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be useg out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

Humidity Sensor
Range: 0-100% RH
Accuracy: +/- 2% RH in range 10-90% RH
Resolution: +/- 1% RH

CO2 Sensor
Range: 400-2000 ppm
Accuracy: 50 ppm + 5% of reading

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%

Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureRelative Humidity, Temperature, CO2

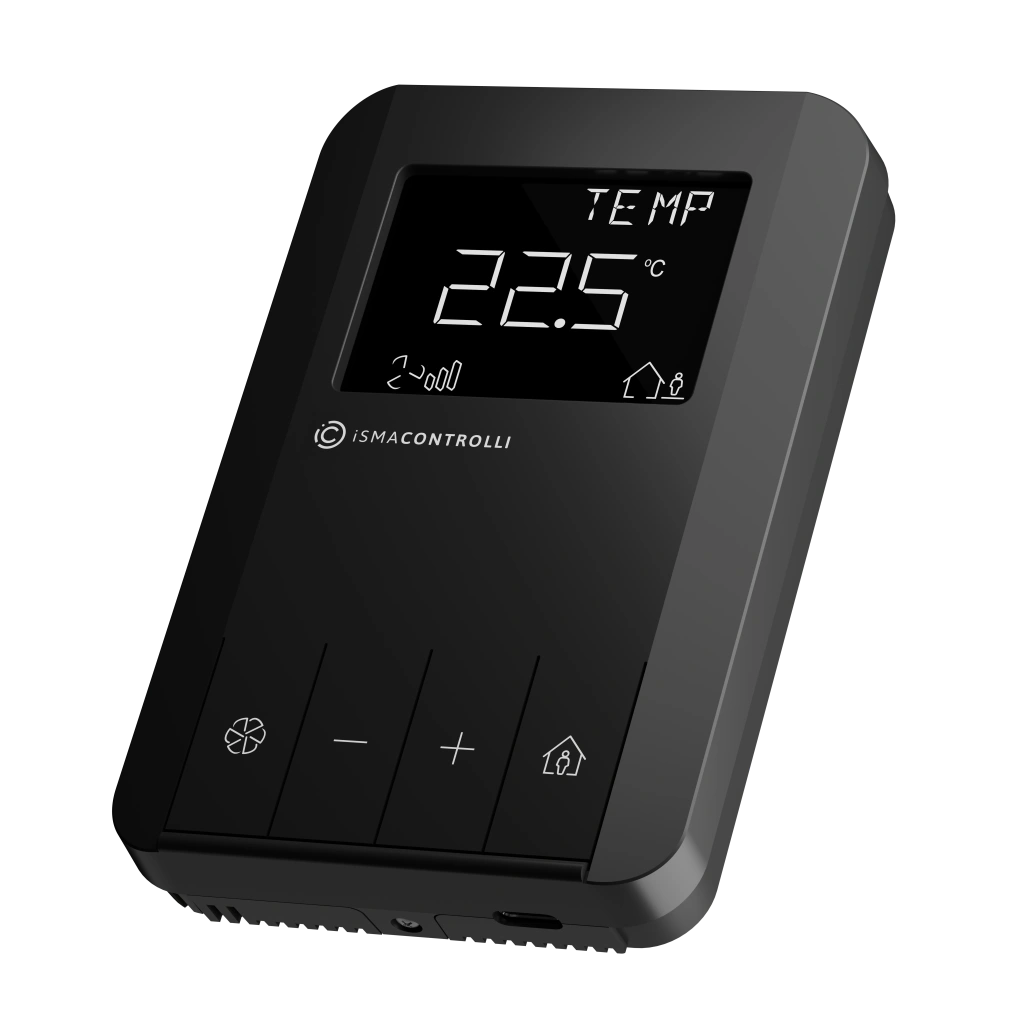

CP-HC-DISP-B

CP-HC-DISP-B

Control Point wall panel with 2,6″ LCD display, buttons for navigation and temperature setpoint. Built-in temperature, and CO2 sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations. The CP-HC version is equipped with a temperature, humidity, and CO2 sensors.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be useg out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

Humidity Sensor
Range: 0-100% RH
Accuracy: +/- 2% RH in range 10-90% RH
Resolution: +/- 1% RH

CO2 Sensor
Range: 400-2000 ppm
Accuracy: 50 ppm + 5% of reading

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%

Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureRelative Humidity, Temperature, CO2



CP-H-DISP-B

CP-H-DISP-B

Control Point wall panel with 2,6″ LCD display, buttons for fan control, occupancy and temperature setpoint. Built-in temperature, and humidity sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations.The CP-H version is equipped with a temperature and humidity sensors.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be used out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

Humidity Sensor
Range: 0-100% RH
Accuracy: +/- 2% RH in range 10-90% RH
Resolution: +/- 1% RH

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%

Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureRelative Humidity, Temperature



CP-H-DISP-W

CP-VAV-C-DISP-W

Control Point wall panel with 2,6″ LCD display, buttons for navigation and temperature setpoint. Built-in temperature, and CO2 sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations.The CP-H version is equipped with a temperature and humidity sensors.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be used out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

Humidity Sensor
Range: 0-100% RH
Accuracy: +/- 2% RH in range 10-90% RH
Resolution: +/- 1% RH

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%

Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureRelative Humidity, Temperature



CP-DISP-B

CP-DISP-B

Control Point wall panel with 2,6″ LCD display, buttons for fan control, occupancy and temperature setpoint. Built-in temperature sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations. The CP version is equipped with a temperature sensor.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be used out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%

Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureTemperature



CP-DISP-W

CP-DISP-W

Control Point wall panel with 2,6″ LCD display, buttons for fan control, occupancy and temperature setpoint. Built-in temperature sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations. The CP version is equipped with a temperature sensor.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be used out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%

Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureTemperature



CP-C-DISP-W

CP-C-DISP-W

Control Point wall panel with 2,6″ LCD display, buttons for fan control, occupancy and temperature setpoint. Built-in temperature, and CO2 sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations. The CP-C version is equipped with a temperature and CO2 sensors.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be used out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

CO2 Sensor
Range: 400-2000 ppm
Accuracy: 50 ppm + 5% of reading

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%


Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureTemperature, CO2



CP-C-DISP-B

CP-C-DISP-B

Control Point wall panel with 2,6″ LCD display, buttons for fan control, occupancy and temperature setpoint. Built-in temperature, and CO2 sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.

Get A Quote

Ultimate Flexibility
16 hardware configurations. Control Point comes in white or black housing and has two versions of buttons, with or without fan control. Available with a set of temperature, CO2, and humidity sensors in different configurations. The CP-C version is equipped with a temperature and CO2 sensors.

Open Customization Over Network
Not only default values like temperature can be displayed but also alarms, blinds, and lightning thanks to the open network interface.

Multiprotocol Integration
Factory-equipped with the two most popular open-communication protocols, Modbus and BACnet.

Plug & Play Comfort Management Solutions
Combined with iSMA CONTROLLI zone controllers, it is ready to be used out of the box, reducing engineering costs.

Seamless Configuration
Control Point offers effortless configuration using network protocols or free-of-charge software using built-in USB-C port.

Technical Specification

Hardware Specification
Built-in 2.6” LCD display with backlight
Four buttons for fan control, occupancy, and temperature setpoint
RS485 interface
USB type C interface
DIP switch for configuration
Flush wall box 60 mm, US 1-gang electrical outlet box

Temperature Sensor
Range: 0-50°C
Accuracy: +/- 0.5°C
Resolution: +/- 0.1°C

CO2 Sensor
Range: 400-2000 ppm
Accuracy: 50 ppm + 5% of reading

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software: iC Tool & iSMA Configurator

Power Supply
24 V AC/DC ± 20%


Power supply24 V AC, 24 V DC
Controller typeConfigurable
Communication protocolBACnet MS/TP, Modbus RTU/ASCII
MeasureTemperature, CO2



Mshriy C&E and iSMA Controlli Products Shine in the Innovation Zone at ACREX India Expo 2025

Mshriy C&E and iSMA Controlli Products Shine in the Innovation Zone at ACREX India Expo 2025

Mshriy Consultancy & Engineering, in collaboration with iSMA Controlli, proudly announces the selection of three cutting-edge products for the prestigious Innovation Zone at the ACREX India Expo 2025. These groundbreaking solutions highlight our commitment to excellence in building automation and control systems.

Get In Touch

Products Highlight

VAV14-IP Controller

Featured in the Innovation Zone, the VAV14-IP Controller sets a new benchmark in energy efficiency and performance. It is tailored for modern building automation systems, ensuring precision and reliability.

Smart HVAC Systems

Introducing our latest intuitive panel, the Control Point, designed for seamless and centralized building management. With its user-friendly interface and robust capabilities, it empowers users to manage operations efficiently.

Smart HVAC Systems

The MAC36PRO represents the next generation of controllers, built for advanced automation. Its powerful architecture is ideal for sophisticated projects, delivering unmatched scalability and integration.

blog-inner-01

ACREX India Expo 2025

The intersection of HVAC and automation in aeronautics represents a significant leap forward in aviation technology. These advancements not only enhance passenger comfort and safety but also contribute to more efficient and sustainable air travel. As the industry continues to innovate, the future of aviation promises even greater improvements in efficiency, safety, and passenger experience.

Government-Public-Infrastructure-Automation-01

Sustainable Design for Public Sector and Government Buildings

Government & Public Infrastructure Automation

Integrated Building Management & Monitoring Solutions for Smart Infrastructure.

Get In Touch

Intelligent Infrastructure for Government & Public Sector Facilities

Public sector and government facilities require robust, scalable, and efficient infrastructure systems to support continuous operations, public service delivery, and regulatory compliance. These buildings—including administrative offices, institutional complexes, and civic infrastructure—must maintain controlled environments while optimizing energy usage, operational efficiency, and lifecycle costs.

Government-Public-Infrastructure-Automation-01
Government-Public-Infrastructure-Automation-02

Smart Building Management Solutions

Mshriy offers comprehensive Building Management Systems (BMS) and Environmental Monitoring Systems (EMS) designed to modernize and centralize facility operations. Our solutions enable real-time monitoring and control of critical parameters such as temperature, humidity, air quality, and energy consumption across multiple zones and utilities. By integrating various building services into a unified platform, we ensure improved visibility, faster response to system deviations, and streamlined facility management.

Enhancing Reliability Through Intelligent Automation

The implementation of BMS and EMS significantly enhances operational reliability, reduces manual intervention, and supports predictive maintenance strategies. Centralized data logging, alarm management, and reporting capabilities ensure transparency and assist in meeting compliance and audit requirements. These systems also contribute to energy optimization initiatives, aligning with sustainability goals and government mandates for efficient infrastructure.

Government-Public-Infrastructure-Automation-03
Government-Public-Infrastructure-Automation-04

Building Smarter Public Infrastructure for the Future

With a focus on scalability, interoperability, and long-term performance, our solutions are well-suited for large-scale public infrastructure projects and smart building initiatives. This enables government organizations to transition towards digitally enabled, energy-efficient, and intelligently managed facilities, ensuring improved service delivery and optimized operational expenditure.

Importance of Sustainable Design in Public Sector Buildings

Sustainable design is crucial for public sector and government buildings for several reasons:

Environmental Impact

Public buildings have a significant environmental footprint. Implementing sustainable practices helps reduce this impact, conserving resources and reducing pollution.

Economic Efficiency

Sustainable buildings are more cost-effective in the long run due to lower energy and water consumption, reduced maintenance costs, and improved longevity.

Public Health

Sustainable design promotes better indoor air quality and natural lighting, contributing to the health and well-being of occupants.

Regulatory Compliance

Governments are increasingly mandating sustainability standards for public buildings. Adhering to these standards is not just beneficial but often required.

Best Practices for Creating Sustainable Public Sector Buildings

Energy Efficiency

Utilize energy-efficient HVAC systems, LED lighting, and renewable energy sources like solar panels.

Water Conservation

Implement low-flow fixtures, rainwater harvesting systems, and greywater recycling.

Sustainable Materials

Use recycled, low-emission, and locally sourced materials

Waste Management

Develop comprehensive waste reduction, recycling, and disposal strategies.

Indoor Environmental Quality

Ensure proper ventilation, use non-toxic materials, and maximize natural light.

Achieving Certifications

Certifications from reputable organizations like IGBC, ISHRAE, and ASHRAE validate the sustainability of a building. Here’s how public sector buildings can achieve these certifications:

IGBC Certification:

Focuses on various aspects of green building design, including site selection, water and energy efficiency, materials, and indoor environmental quality. Buildings must meet specific criteria and undergo an assessment process.

ISHRAE Certification:

Emphasizes energy-efficient HVAC systems. Buildings need to implement ISHRAE’s guidelines and undergo performance assessments.

ASHRAE Certification:

Provides standards for energy efficiency, indoor air quality, and sustainable design. Compliance with ASHRAE standards involves detailed planning, implementation, and periodic reviews.

Benefits of Green Building Practices in the Public Sector

Cost Savings

Reduced energy and water bills, lower maintenance costs, and potential tax benefits.

Enhanced Occupant Comfort and Productivity

Better indoor environments improve the comfort and productivity of occupants.

Environmental Responsibility

Contributes to global efforts to reduce carbon emissions and conserve resources.

Positive Public Image

Demonstrates a commitment to sustainability, enhancing public trust and reputation.

Sustainable design in public sector and government buildings is essential for environmental conservation, economic efficiency, and public health. By implementing best practices and achieving certifications, these buildings can lead the way in promoting sustainability. Mshriy is committed to supporting these initiatives, ensuring that public sector projects meet and exceed sustainability standards.

Thank you for choosing Mshriy to guide your journey towards sustainability. If you have any further questions or need assistance, feel free to contact us.

Modernize Public Infrastructure with Smart Solutions

Contact Us
