iSMA-B-J8

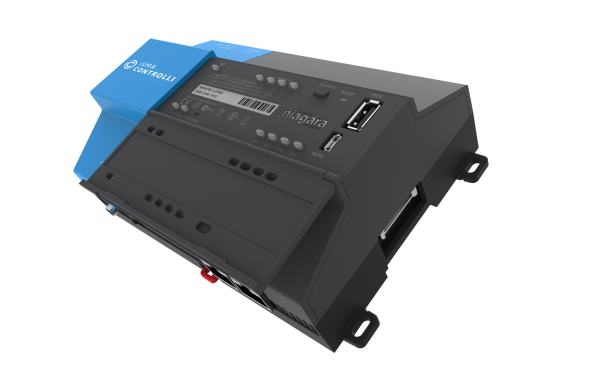

The iSMA-B-J8 controller is the hardware platform optimized for Niagara 4. This next-generation controller features a global design that functions with legacy systems and has the ability to scale for the future needs. The iSMA-B-J8 controller offers significant improvements over previous generations.

Optimized for Niagara 4
The JACE 8000 controller leverages all of the features of Niagara 4. It adds to the enhanced user experience, maximizing Niagara’s advantages in delivering HTML5 views, charting, and other aspects of data visualization, as well as its robust security and improved device management capabilities. With a simple configuration, toolless installation, low-cost integration, and high-powered performance, the JACE 8000 controller is a radical evolution in connecting and controlling devices worldwide.

Efficient Global Design
The new, modular design of the JACE 8000 controller makes it easy to install, integrate, and deploy. Toolless installation with expansion capability reduces installation complexity and improves flexibility. Systems integrators can focus on engineering solutions, not assembling components.

Wireless Capability
Standard Wi-Fi offers enhanced wireless capability when interfacing with the next generation of wireless sensors and devices. The JACE 8000 controller is also configurable as an access point so that mobile phones and tablets can display information and advanced graphics. Expansion also is available when interfacing with other wireless fieldbuses seen in connected buildings.

Niagara Framework
Versions 4.1 and up

Licensing
Base license: 100 points to 10000 points
Update packages: 500 points to 2500 points




Technical Specification



Hardware Specification
ARM-Cortex A 8 dual core CPU
1 GB DDR3 RAM
Opto-isolated RS485 interface
2 10/100 MB independent Ethernet interfaces
USB type A
802.11a/b/g/n WiFi adapter
FRAM memory for Data Recovery Service
Removable 4 GB microSD card
Status LED indicators
DIN rail mounted

Communication
Modbus RTU/ASCII
Modbus TCP/IP
BACnet MS/TP
BACnet IP
oBiX
SNMP
KNX IP
M-Bus IP
LON IP
TLS/SSL encryption
Built-in HTTP web server
MQTT
Over 200 available drivers for proprietary protocols

Power Supply
24 V DC
24 V AC


Power supply24 V AC, 24 V DC
Controller typeProgrammable
Communication protocolBACnet MS/TP, BACnet IP, KNX, WiFi, Modbus RTU/ASCII, Modbus TCP/IP, M-Bus IP, LON, MQTT, SNMP, OPC, oBIX
